Accent Lighting Upgrade for 1976 Chevrolet Corvette from Lehighton

A client from Lehighton contacted Mobile Edge to find out if we could add some custom lighting to his 1976 Corvette. The car is in pristine condition inside and out and has been upgraded with a 6.2-liter LS3 engine that produces at least twice as much power as the original powerplant. The client wanted lighting in the engine bay, the front grille, the footwells and behind the seats. After some examination, we developed a solution that would give the car the style that the client wanted.

Custom Corvette Lighting System

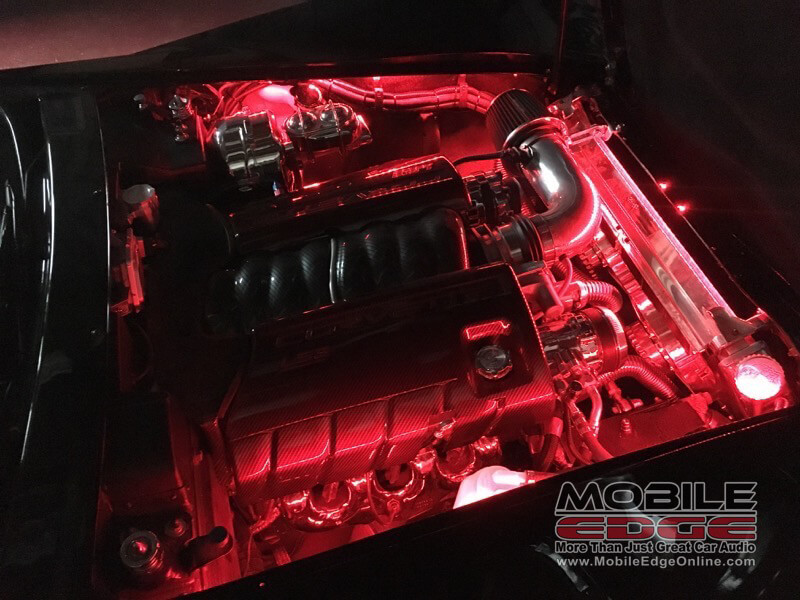

The colored lighting provided a very dramatic effect on the engine compartment.

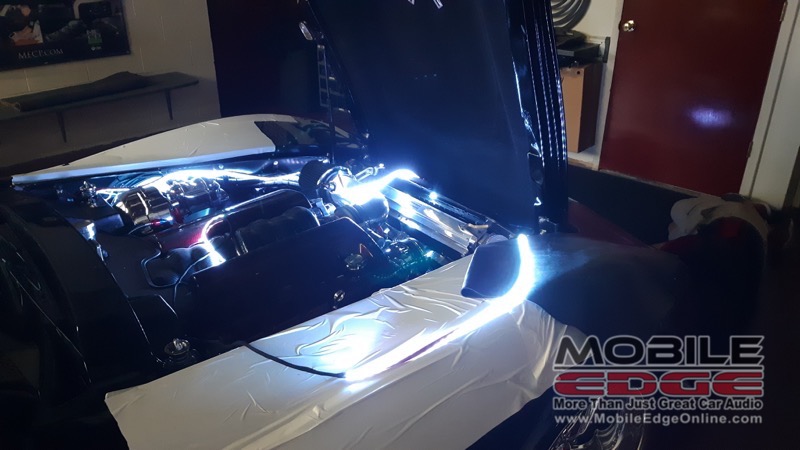

The lighting around the engine bay was carefully concealed.

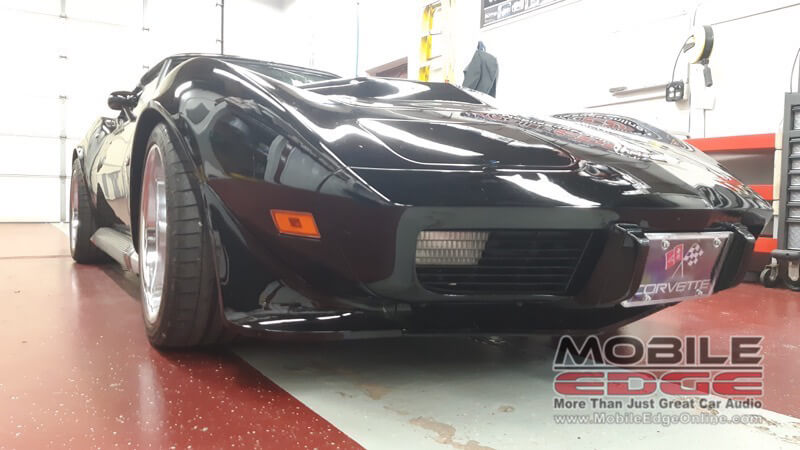

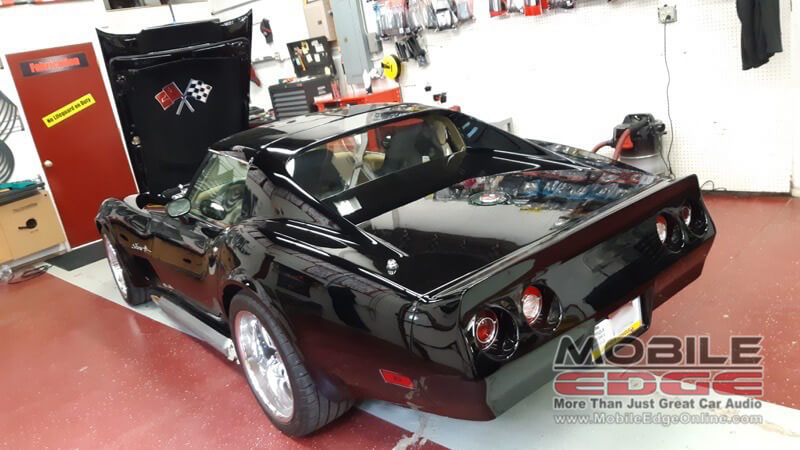

Our team loved looking at this classic Corvette while it was in our care.

We based the lighting system around a Heise HE-WFRGBC-1 16-color LED lighting controller. This compact control module includes a 24-button, credit-card-sized remote control that allows the client to choose the lighting color and whether or not the colors change to a specific pattern.

The control module is connected to more than 16 feet of RGB lighting strip strategically placed around the vehicle. We used a number of the Heise H-QCRGB-1 quick connectors to run wires from one lighting strip to another around the vehicle.

The largest pieces of LED strip are mounted just under the edges of the front fenders and just ahead of the hood. When looking in from above, the light strips are concealed nicely, but their output reflectsf off of the chrome and carbon fiber accents in the bay.

Interior Accent Lighting Upgrade

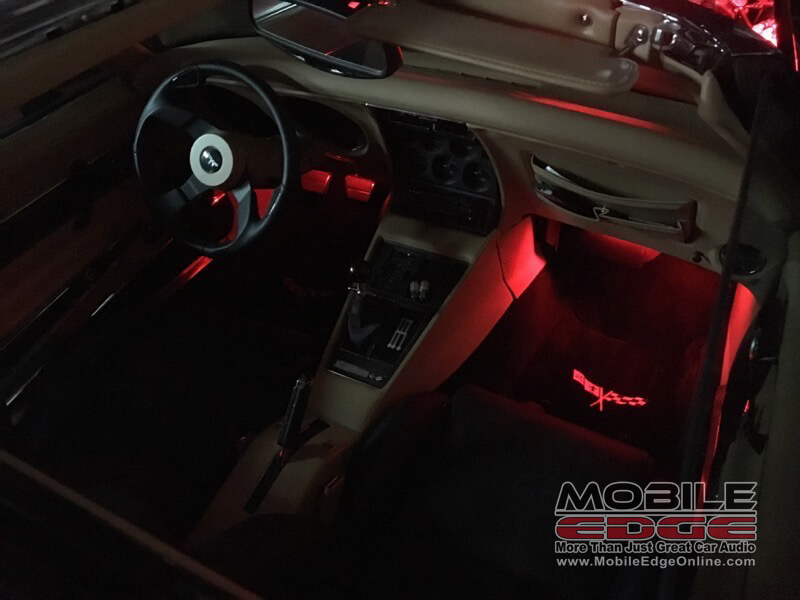

Segments of the LED lighting were used to light the footwells.

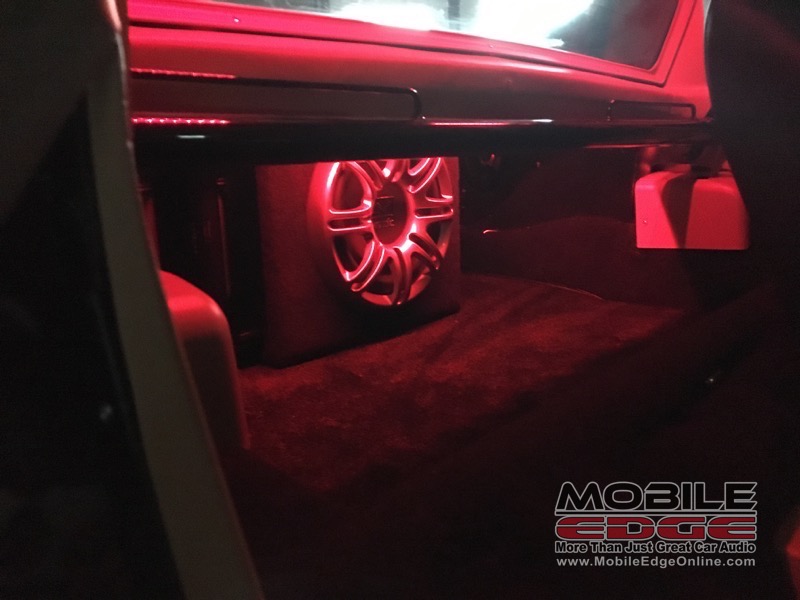

The subwoofer in the rear was lit too.

As important as it is to conceal the light strips under the hood, hiding the lighting in the interior is equally crucial. We lit the footwells and added a strip in the cargo area and just above the rear window.  The lighting illuminates the customer’s Polk Audio subwoofer that is mounted in the rear of the vehicle.

One of the most time-consuming aspects of a project like this is running the wiring from the controller to each of the light strips. The wiring needs to be concealed while being protected from damage or wear as it runs past trim pieces and other harnesses.

Lehighton’s Automotive Accessory Experts

With the accent lighting system on this Corvette installed and tested, the client returned to the shop, eager to see his vehicle. He was very happy with the results and excited to take the car to a few evening shows now that the sun is setting earlier. If you are interested in adding accent lighting to your vehicle, drop by Mobile Edge in Lehighton and talk to one of our solution consultants. You can schedule a personal consultation by e-mail by clicking on the red button below or by calling the store.
